500W / 1000W / 2000W / 3000W DC Power Supply for PVD Coating



Applications

  • PVD coating of various pure metal materials: Al, Ti, Nb, Ni, Cu, Ag, Au, Zr, Cr, Tb, etc.

Key Features

  • Digital control with DSP + FPGA

  • TFT touchscreen display – stores and displays cathode & power supply working status for real-time tracking

  • High output accuracy – excellent process repeatability and uniform film layer

  • Intelligent arc management system – fast arc suppression and restart

  • Constant current / constant power mode switching – constant power mode ensures better coating process repeatability



Models

Model C1F-005K01 C1F-01K02 C1F-02K04 C1F-03K05
Power 500W 1000W 2000W 3000W
Max output current 1000mA 2000mA 4000mA 5000mA
Voltage at rated power 500V 500V 500V 600V



Specifications:

Parameter Details
Input voltage & frequency 220Vac ±10% + PE, 50-60Hz
Operating modes Constant current / constant power (factory default: constant power)
Max ignition voltage ≥1000V
Arc detection time <0.1μs
Arc energy <0.2mJ/kW
Max arc extinguishing capability 20,000 arcs/s
Display 7" TFT touchscreen
Display resolution 1V / 1mA / 1W
Output accuracy ≤1% of setpoint
Efficiency >90% (at rated output)
Cooling Fan cooling
Operating altitude Below 2000m
Operating temperature +5°C to +45°C

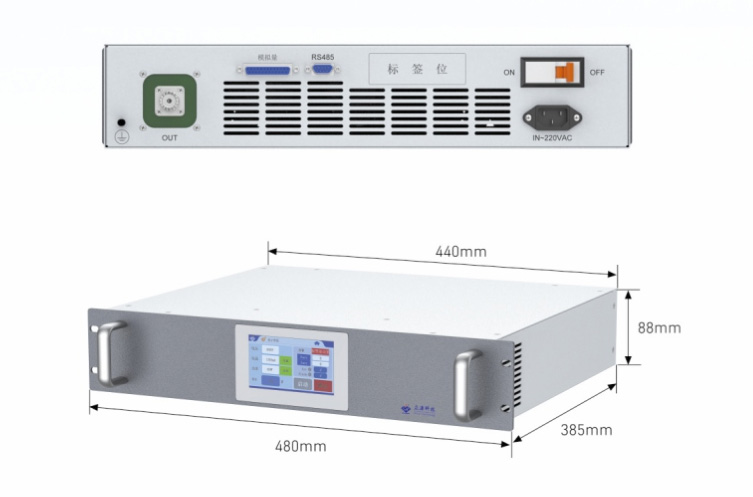

Dimensions 2U 19" rack: 88H × 440W × 385D (mm)



Interfaces

  • Analog I/O (standard): DB25, 0-10VDC

  • RS-485 (standard, Modbus-RTU): DB9, Pin1 A, Pin2 B

  • Profibus (optional, indicated in model suffix): DB9, Pin3 A, Pin8 B, Pin5 GND

  • Interlock (standard): DB25, Pin2 & Pin5 closed

  • Output cable & length (5m): UHF female to RG214 cable with OT4-5 lug

  • Output connector: Screw-type UHF male (for 7mm cable)

  • Grounding: M6 bolt, 2.5mm² (green/yellow) wire with RV2-4 terminal

Included Accessories

  • 1.5m input power cable – 10A 250V, 3-prong IEC C13 (China standard)

  • Output cable assembly as above
