Horizontal Large-Scale Multi-Arc Ion & Magnetron Sputtering Coating System
(For Furniture Panels & Stainless Steel Sheets)

Our Horizontal Large-Scale Coating System is a next-generation PVD (Physical Vapor Deposition) solution designed specifically for decorative and functional coating applications on furniture boards (wood-based panels, MDF, HDF) and stainless steel sheets.

Unlike traditional vertical coaters, this horizontal configuration eliminates the need for floor pits, lowers workshop height requirements, and simplifies long-distance transportation – making it the ideal choice for manufacturers seeking high productivity with minimal installation constraints.

🔹 Features

No floor pit required Simple foundation, quick installation, no costly civil works.
Lower workshop height Works perfectly in standard single-story or low-ceiling factories.(comparing to vertical chambers)
Easy to transport Horizontal chamber splits into modules; fits standard containers & flatbed trucks.
Wide substrate compatibility Handles furniture panels (up to 2.4m length) and stainless steel sheets (0.3–3.0mm thickness).
Dual coating technologies Integrates multi-arc ion plating + magnetron sputtering in one system – adjust process for brilliant colors, metallic finishes, or anti-fingerprint layers.

🔹 How It Works

The system deposits high-performance thin films (e.g., TiN, TiC, CrN, ZrN, stainless steel color coatings) onto flat workpieces via:

  • Multi-Arc Ion Plating – for dense, highly adherent coatings with excellent hardness and striking decorative colors (gold, rose gold, black, bronze, blue).

  • Magnetron Sputtering – for ultra-smooth, uniform metallic layers (silver, chrome, titanium) with precise thickness control.

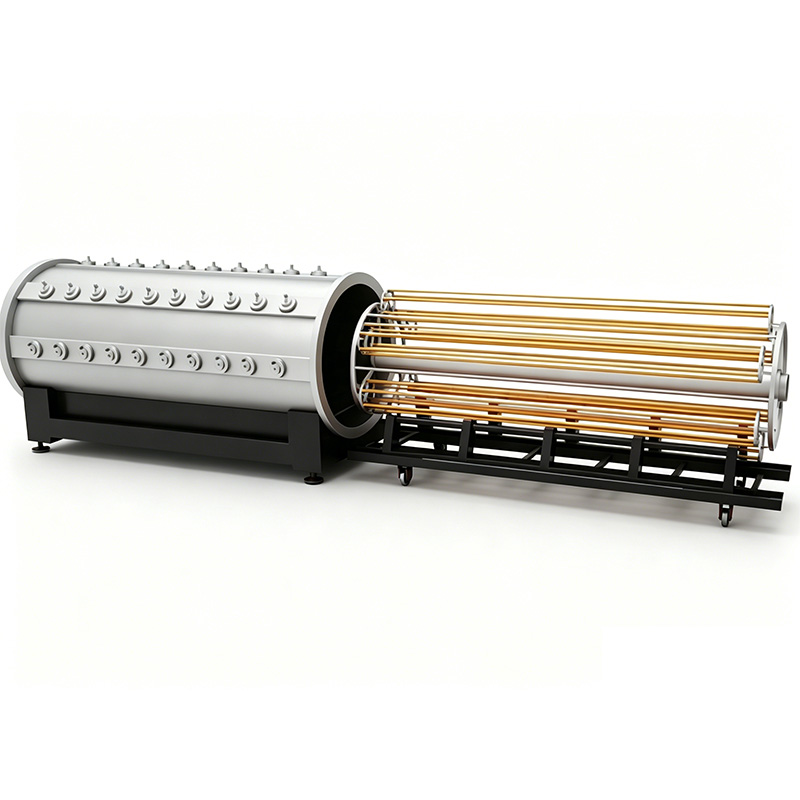

Workpieces are loaded horizontally onto a motorized cart or conveyor, then driven into the vacuum chamber. The horizontal layout allows easy manual or automatic loading/unloading without overhead cranes.

🔹 Specifications:

Substrate material Furniture panels (wood-based), stainless steel, aluminum, pre-coated sheets
Coating technologies Multi-arc (cathodic arc) + planar/rotary magnetron sputtering
Vacuum chamber type Horizontal cylindrical or rectangular
Ultimate pressure ≤ 8×10⁻⁴ Pa
Coating uniformity ≤ ±5% (across full area)
Power supply Arc: 160A–400A; Sputtering: DC / MF / HiPIMS optional
Control system PLC + HMI (auto recipe management, data logging)
Installation floor pit Not required – just a flat, leveled concrete floor
Min. workshop height 3.5 m (including ventilation clearance)
Transport Split design, fits 40ft HC container or flat rack

🔹 Applications

 Furniture Industry

  • High-gloss & metallic finish on MDF, HDF, WPC boards for kitchen cabinets, wardrobes, table tops.

  • Anti-fingerprint & scratch-resistant clear or tinted coatings.

  • Brass / copper / titanium look for interior decoration panels.

 Stainless Steel Sheets

  • Decorative color coating (gold, black, bronze, blue, green, purple) for building facades, elevator panels, kitchen backsplashes.

  • Anti-fingerprint, anti-bacterial, or anti-corrosion functional layers.

  • Soft-touch & metallic luster for premium appliances.

🔹 Delivery & Installation

  • Delivery: 60–90 days after order confirmation.

  • Installation: Our engineer will supervise assembly and commissioning within 2-3 weeks.

  • Training: On-site operation & maintenance training for your team.
