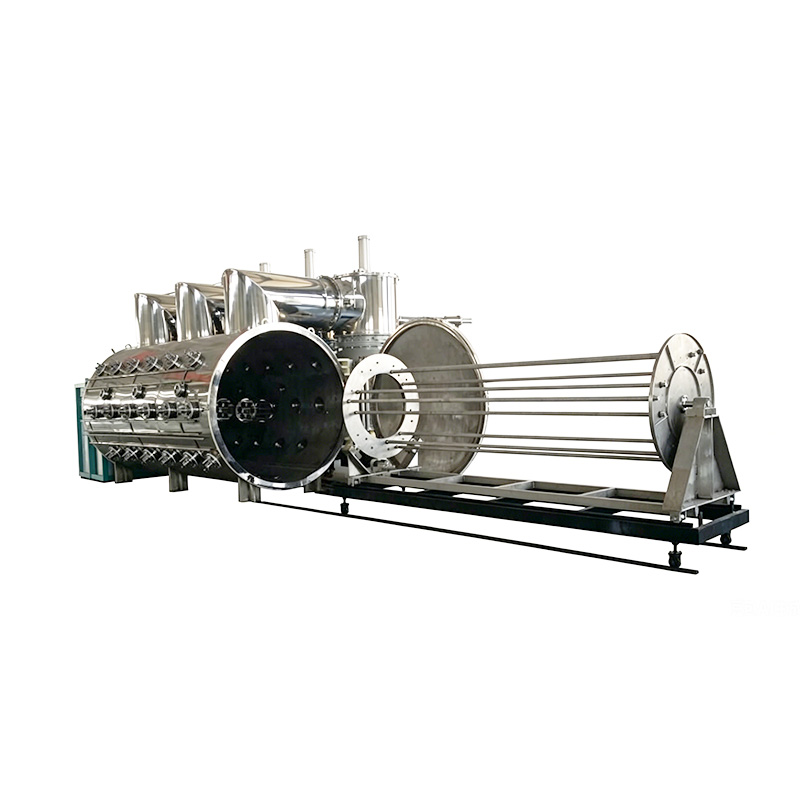

Horizontal Multi-Arc Ion Coating Machine – Premium Decorative PVD Coating for Large-Sized Workpieces
Elevate Aesthetics & Durability – Uniform, Brilliant, and Scalable Coating Solutions for Industrial & Architectural Applications
Unlock unlimited design possibilities with our Horizontal Multi-Arc Ion Coating System, engineered specifically for decorative PVD (Physical Vapor Deposition) coating on oversized substrates. From stainless steel plates and furniture frameworks to ceramic tiles, this machine delivers high-adhesion, wear-resistant, and vividly colored finishes – transforming ordinary surfaces into premium, value-added products.
Whether you manufacture luxury stainless steel furniture, architectural panels, or decorative tiles, our horizontal configuration ensures even coverage, high throughput, and low maintenance, making it the go-to choice for factories aiming to scale production without compromising on visual excellence.
Features
True Horizontal Design for Extra-Long Workpieces
Unlike vertical coaters with size limitations, our horizontal chamber accepts large stainless steel sheets (up to 6m length), table bases, chair frames, and ceramic slabs without repositioning. Say goodbye to uneven edges or shadow effects.
Multi-Arc Ion Deposition – Durable & Vibrant
Advanced multi-arc source technology creates a dense, metallic-ceramic hybrid coating that resists scratches, corrosion, and UV fading. Achieve high-gloss, matte, brushed, or mirror finishes in virtually any color: gold, rose gold, champagne, black, bronze, copper, blue, and more.
Superior Decorative Performance
Excellent adhesion (scratch tape test pass)
High hardness (HV 2000–3000)
Resistance to fingerprints and chemicals
Eco-friendly – zero hazardous waste or liquid discharge
User-Friendly & Energy Efficient
PLC + HMI touchscreen control with recipe memory
Fast cycle time (30–90 min per batch)
Low arc droplet emission for smoother surfaces
Automatic arc source cleaning & failure diagnostics
Technical Specifications
| Parameter | Value |
|---|---|
| Effective coating size (L×W×H) | Customizable |
| Substrate material | Stainless steel, ceramics, glass, metal alloys |
| Coating thickness | 0.1 – 5 μm (decorative range) |
| Deposition rate | 1–3 μm/hour |
| Uniformity | ≤ ±5% across full load |
| Number of arc sources | 24–48 pcs (adjustable) |
| Ultimate pressure | 8×10⁻³ Pa |
| Working gas | Ar, N₂, C₂H₂, O₂ |
Custom configurations available upon request.
Applications
| Industry | Application Examples |
|---|---|
| Architectural Decoration | Elevator panels, stainless steel wall cladding, lobby columns |
| Furniture Manufacturing | Dining table frames, chair legs, office desks, luxury bed frames |
| Ceramic Tiles | Brushed/golden trims, metallic-effect porcelain panels |
| Kitchen & Bath | Sinks, faucet bodies, cabinet handles, backsplash sheets |
| Lighting & Hardware | Decorative trims, door handles, curtain rods |
Why Choose Our Horizontal Coating Machine?
-
No Size Limits – Coat 6m+ stainless steel plates or whole furniture frames in a single run.
-
Consistent Colors – Batch after batch, even on complex 3D shapes.
-
Low Operating Cost – Extended arc source life + easy maintenance doors.
-
Global Support – Installation, training, and remote troubleshooting from our engineers.
We offer fully customizable chamber sizes, arc source layouts, and automation levels to match your production volume and floor space. Free feasibility testing with your actual samples – send us a stainless steel panel or ceramic tile for a trial coating.
Upgrade your decorative coating line today.
Contact us for a tailored solution.
