Aluminum AL Deposition Inline Machine Magnetron Sputtering System
Aluminum (Al) Deposition Inline Magnetron Sputtering System is a state-of-the-art, high-volume production machine designed for the precise, uniform, and highly efficient deposition of aluminum thin films onto a wide range of substrates. This system leverages the proven technology of magnetron sputtering within a continuous, automated inline platform, making it the ideal solution for industries requiring high throughput, exceptional film quality, and superior process control.
General description

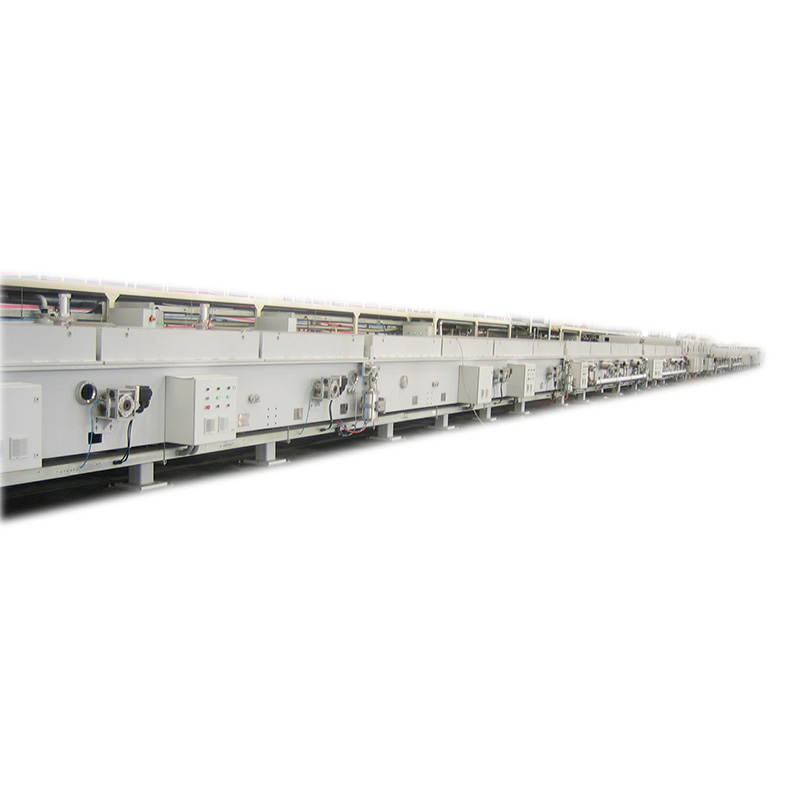

This sputtering system is configured as an "in-line" machine, meaning substrates are loaded at one end and transported sequentially through a series of interconnected vacuum chambers on a precision conveyor system. This design enables continuous, batch-to-batch processing, significantly increasing productivity and reducing cycle times compared to single-wafer or batch systems. The entire process—from loading and pre-cleaning to deposition and cooling—occurs within a single, integrated, and automated vacuum environment.
Magnetron Sputtering: At the heart of the deposition process lies the Magnetron Sputtering technology. The fundamental process:
1. Vacuum Environment: The process chambers are evacuated to a high vacuum to create a clean, contaminant-free environment.
2. Introduction of Process Gas: An inert gas, typically Argon (Ar), is introduced into the deposition chamber at a controlled pressure.
3. Plasma Generation: A high voltage is applied between the aluminum target (cathode) and the chamber (anode), ionizing the argon gas and creating a plasma.
4. Sputtering Process: Energetic argon ions (Ar⁺) are accelerated towards and bombard the high-purity aluminum target. This bombardment ejects (sputters) aluminum atoms from the target's surface. A various of metals, such as titanium, silver, chrome, copper or metal compositions can be also applied by this sputtering process.
5. Film Deposition: The metal atoms travel through the chamber and condense on the surface of the substrates, forming a thin, highly adherent, and uniform coating.
The "magnetron" component uses strategically placed magnets behind the target to trap electrons near the target surface. This enhances the ionization efficiency of the argon gas, allowing for a higher sputtering rate at lower pressures and voltages, leading to superior film quality and reduced substrate heating.
Sections of the coating system
Loading/Load Lock Chamber: Allows for the introduction of substrates into the vacuum system without breaking the vacuum in the main process chambers.
Transfer System: A robotic or conveyor mechanism that moves substrates between chambers.
Pre-treatment Chambers (Optional): May include plasma etching or heating modules to clean and prepare the substrate surface for optimal adhesion.
Sputtering Deposition Chambers: The core of the system, housing one or more high-purity aluminum targets. Multiple cathodes can be configured for uniform coating on all sides or for sequential deposition of different materials.
Vacuum System: A combination of roughing and high-vacuum pumps (e.g., turbomolecular pumps) to achieve and maintain the necessary base pressure.
Process Control System: A sophisticated computer-based interface for precise control and monitoring of all parameters, including pressure, gas flow, power, and substrate transportation.
Advantages of this sputtering coater
High Throughput & Continuous Operation: The inline design enables non-stop processing, maximizing output and minimizing cost-per-part.
Exceptional Film Uniformity: Advanced cathode design and substrate movement ensure a consistent film thickness and properties across the entire substrate surface and from batch to batch.
Superior Film Quality: Produces dense, low-porosity, and highly conductive aluminum films with excellent adhesion.
High Material Utilization: Magnetron sputtering is highly efficient in its use of the aluminum target material, reducing operational costs.
Scalability & Modularity: The system can be customized in length and chamber configuration to meet specific production requirements and can be adapted for multi-layer depositions.
Process Reproducibility: Fully automated control ensures that every production run is identical, guaranteeing consistent product quality.
Main Applications
This deposition system is critical in several high-tech manufacturing sectors, including:
Photovoltaics: For depositing aluminum back-surface fields (BSF) and rear contacts on silicon solar cells.
Microelectronics & Semiconductors: For creating interconnects, capacitors, and RF shielding.
Packaging: For applying high-barrier aluminum coatings on flexible packaging materials (e.g., food, pharmaceutical packaging) to protect against moisture and oxygen.
Automotive & Aerospace: For coating components to enhance corrosion resistance, thermal properties, or aesthetics.
Flat Panel Displays (FPD): For creating conductive layers and electrodes.
