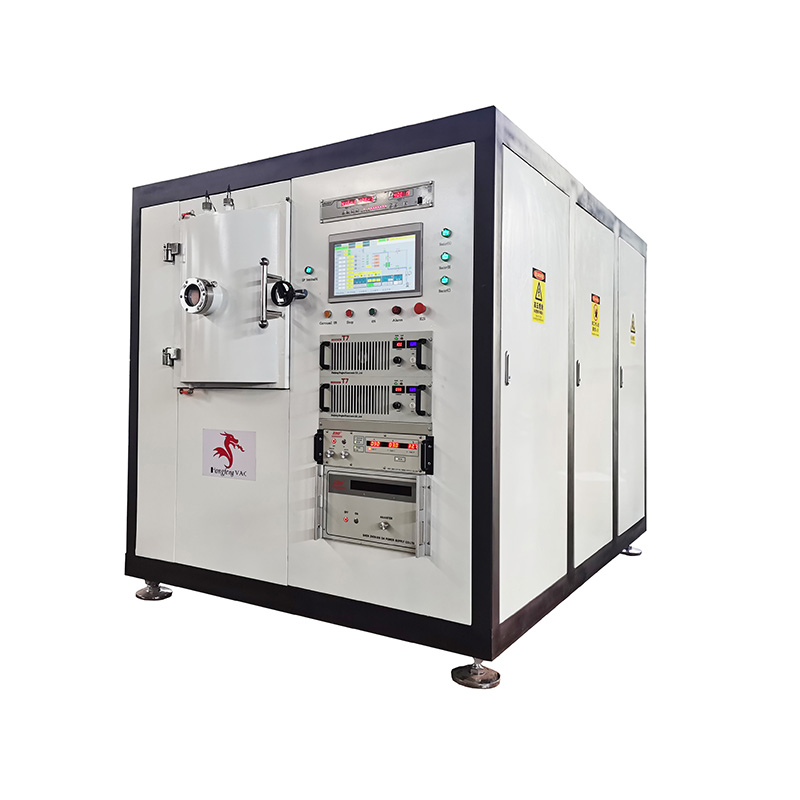

Vacuum PVD Ion-arc Coating Installation

Applied industries:

  Precision mould industry(dies, shear mould, standard mould etc.), tool industry(drill, hard alloy, milling cutter, broaches, screw tap and gear cutter etc.) and automobile industry(piston, piston rings and alloy wheels etc.)

Coating film:

  Designed for the hard coating and super hard protective film of tools, knives, moulds；It can deposit TiN, TiC, TiCN, TiAlCN, TiCrN, TiCrCN, TiAlCrN, multilayer super hard coatings.

Technical requirements



Working environment:

5.0x10-3Pa

High vacuum

5.0x10-4Pa

Low vacuum

Atmosphere to desired vacuum

Temperature control:

PID regulation

Coating method:

ion-arc

Chamber size

∅500 x (H)600 mm

Target diameter: not less than 75 mm;

∅100mm

Sample size diameter:

As required

Process gases:

Ar2, O2, N2, C2H2, etc

Coating materials

Superhard and nano composite coatings

Uniformity:

No more than 5%;

Software:

Windows, graphical interface, fully automatic system must provide automatic blocking of the installation according to the parameters of incoming energy carriers (pneumatics, water, clean gases) and the specified system parameters, have an intuitive (friendly) interface, have an alarm system for emergency situations.
