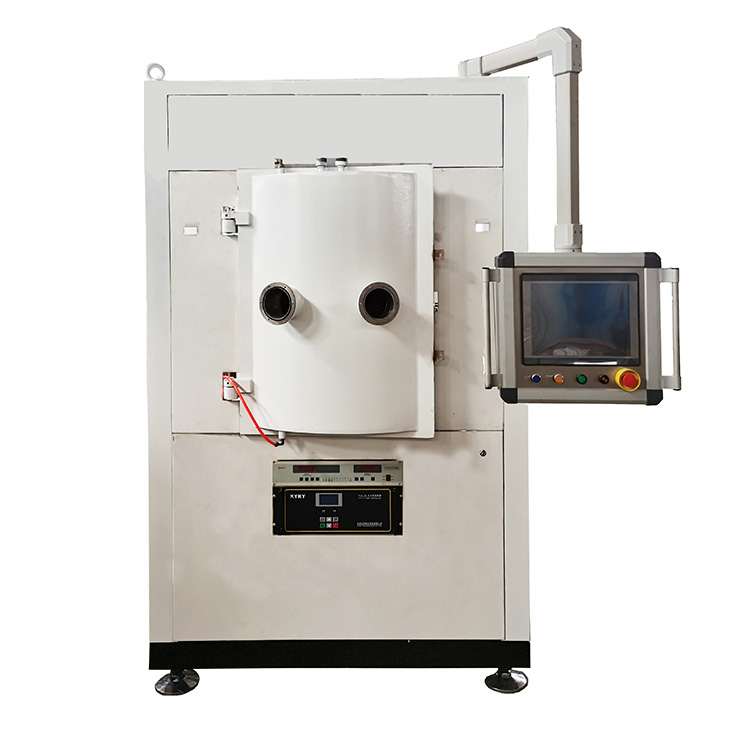

SP Series Advanced Magnetron Sputtering System for Cutting Tools

Revolutionizing Tool Performance Through Next-Generation PVD Coating

The SP Series is a state-of-the-art magnetron sputtering Physical Vapor Deposition (PVD) system, engineered specifically to meet the extreme demands of the cutting tool industry. It is designed to deposit ultra-hard, wear-resistant, and thermally stable coatings that significantly extend tool life, increase machining speeds, and improve workpiece quality.

The Challenge: Demands of Modern Machining

Modern manufacturing processes, such as high-speed machining (HSM) and dry machining, push cutting tools to their limits. Tools face intense heat, abrasive wear, and adhesive material build-up (built-up edge), leading to premature failure, reduced accuracy, and increased operational costs.

 Our Solution: Precision Engineered Coating Excellence

The SP Series addresses these challenges head-on by applying superior PVD coatings that provide a protective, functional surface, transforming the performance characteristics of your cutting tools.

 Key Features & Technological Advantages

    Unmatched Coating Adhesion: Our proprietary High-Ionization Plasma Source and advanced substrate pre-treatment (including intensive argon ion etching) ensure an atomically clean surface and create a metallurgical bond between the coating and the tool substrate. This prevents delamination and flaking under high-load conditions.

   Ultra-Hard, Wear-Resistant Coatains: Deposit a wide range of advanced coating materials, including:
       TiN (Titanium Nitride): The gold standard for general-purpose wear resistance.
       TiAlN (Titanium Aluminum Nitride): Excellent for high-temperature applications, forming a protective alumina layer.
       AlCrN (Aluminum Chromium Nitride): Superior oxidation resistance and hardness for the most demanding dry machining operations.
       TiSiN (Titanium Silicon Nitride): Nanocomposite structure providing extreme hardness and lubricity.
       DLC (Diamond-Like Carbon): For non-ferrous materials, offering excellent anti-galling and low-friction properties.

 Technical Specifications

 Chamber Size:  Customizable
 Batch Capacity:  Up to 1,500+ indexable inserts (varies by tooling)
 Base Pressure:  < 5.0 x 10-4 Pa
 Process Temperature:  300 °C - 550 °C (adjustable)
 Magnetron Sources:  4 x Balanced, Closed-Field (DC/Pulsed DC)
 Target Material:  Rectangular, custom sizes available
 Control System:  Fully Automated PLC with Touchscreen HMI
 Utilities:  Electrical, Chilled Water, Process Gases (Ar, N₂,C2H2, CH4)

Benefits for Your Cutting Tools
Dramatically Extended Tool Life: Reduce tooling costs by up to 800% or more. Tools last significantly longer between regrinds.
Increased Machining Speeds & Feeds: Withstand higher temperatures, enabling faster production cycles and improved efficiency.
Improved Surface Finish: Minimize built-up edge and abrasive wear, resulting in superior finish on the machined workpiece.
Enable Dry / Near-Dry Machining: The thermal barrier properties of coatings like AlCrN reduce or eliminate the need for coolants, lowering operational costs and environmental impact.
Enhanced Reliability & Consistency: Achieve predictable, repeatable performance, reducing unplanned downtime and ensuring manufacturing quality.

Applications
The SP Series is ideal for coating a wide array of cutting tools used in:
Milling (Indexable inserts, end mills, face mills)
Drilling (Twist drills, solid carbide drills, gun drills)
Turning (CNC turning inserts, boring tools)
Gear Hobbing & Broaching
Threading & Tapping

Your Partner in Performance
We are more than an equipment manufacturer; we are your technology partner. Our comprehensive support includes process development, coating trials, and ongoing technical service to ensure you maximize the potential of the SP Series.

Ready to Redefine the Limits of Your Cutting Tools?
Contact Us Today for a personalized consultation and to arrange a coating trial with your specific tools.
