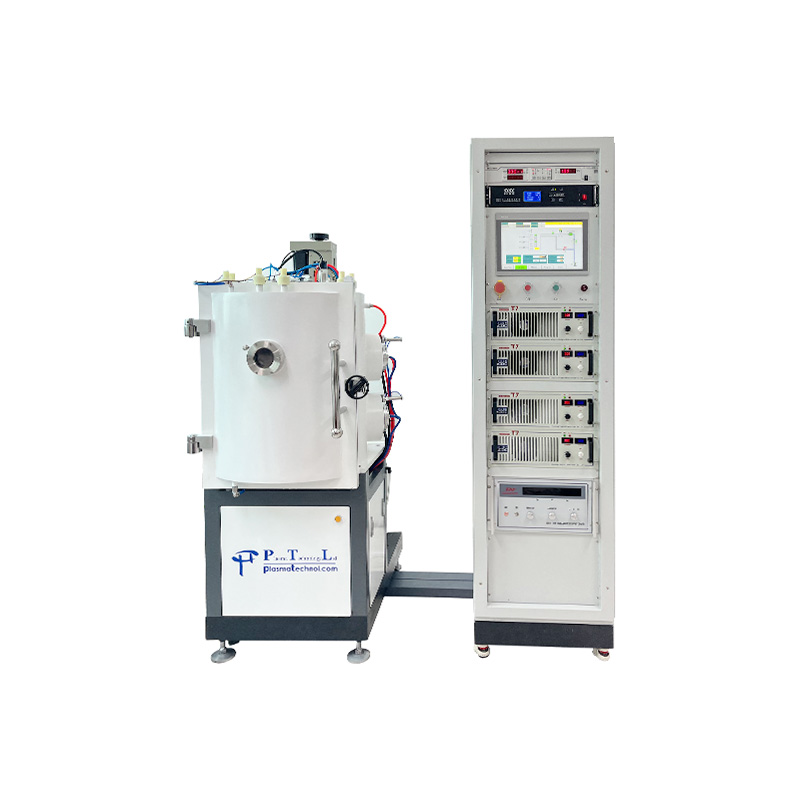

Our Arc Evaporation PVD Coating System is a next‑generation physical vapor deposition furnace designed for industrial‑scale production of ultra‑hard, dense, and highly adhesive coatings. Using cathodic arc evaporation technology, this system delivers exceptional ionization efficiency (up to 90%), enabling superior coating properties compared to conventional sputtering or evaporation methods.
Ideal for cutting tools, molds, automotive components, decorative hardware, and medical devices, our PVD furnace ensures consistent, repeatable results with minimal environmental impact — a true turnkey solution for high‑end surface engineering.
Advantages:
| Feature | Benefit |
|---|---|
| High Ionization Rate (80–90%) | Produces extremely dense, smooth coatings with outstanding hardness (2,000–4,000 HV) and adhesion strength (HF1–HF2). |
| Multiple Arc Sources | Configurable with 4, 8, or 12 arc cathodes for uniform deposition on complex 3D parts. |
| Advanced Filtered Arc Technology (optional) | Removes macro‑particles for mirror‑finish decorative coatings. |
| Fast Cycle Time | Typical process: 2–5 hours, significantly increasing throughput. |
| Wide Material Compatibility | Deposit TiN, TiCN, TiAlN, CrN, AlCrN, DLC, ZrN, and more. |
| User‑Friendly HMI | PLC + touchscreen control with recipe management, data logging, and remote monitoring. |
| Eco‑Friendly | Closed‑loop water cooling, no liquid waste, low power consumption (30–80 kW depending on chamber size). |
Specifications:
| Parameter | Value Range |
|---|---|
| Chamber Size | Ø500×600 mm (customizable) |
| Substrate Temperature | 150 – 550°C (PID controlled) |
| Ultimate Pressure | ≤ 6.7×10⁻⁴ Pa |
| Operating Pressure | 1×10⁻¹ – 1×10⁻² Pa |
| Deposition Rate | 0.5 – 5 µm/h (depending on material) |
| Arc Current | 60 – 200 A per cathode (pulsed or DC) |
| Bias Voltage | -50 to -500 V DC / pulsed DC |
| Heating Power | 6 – 24 kW |
| Rotation System | 3‑axis planetary / barrel rotation for uniform coating |
| Cooling System | Internal water‑jacketed chamber + external chiller |
Applications:
Cutting & Forming Tools
End mills, drills, inserts, taps, punches, dies
Coatings: TiAlN, AlCrN, TiSiN – for high‑speed dry machining
Automotive & Aerospace
Piston rings, valve lifters, injector nozzles, turbine blades
Coatings: CrN, DLC – low friction, anti‑wear, high temperature stability
Decorative & Luxury Goods
Watch cases, stainless steel straps, bathroom fixtures, door handles
Coatings: ZrN (gold), CrN (silver), TiCN (rose gold) – scratch‑resistant, vivid colors
Medical Implants & Instruments
Orthopedic implants, surgical scalpels, dental drills
Coatings: TiN – biocompatible, anti‑corrosive, antibacterial optional
Molds for plastics & die‑casting, bearings, hydraulic components
Why Choose Our Arc Evaporation PVD Furnace?
German‑designed arc sources – Stable arc ignition, minimal droplet emission.
Modular construction – Easy to upgrade from small R&D to full production lines.
Global technical support – On‑site installation, training, and 24/7 remote assistance.
Cost‑effective – Lower maintenance than magnetron sputtering; longer cathode lifetime.
Optional Upgrades
Filtered Cathodic Arc – Eliminates 99% of macro‑particles for optical/electronic coatings.
Hybrid System – Arc + magnetron sputtering + HIPIMS in one chamber.
Automated Load/Unload – Robotic handling for fully automated production lines.
In‑situ Plasma Etching – Pre‑cleaning chamber for maximum adhesion.
Ready to upgrade your coating capabilities?
Contact our engineering team for a customized solution — including chamber size, cathode configuration, and automation level.
