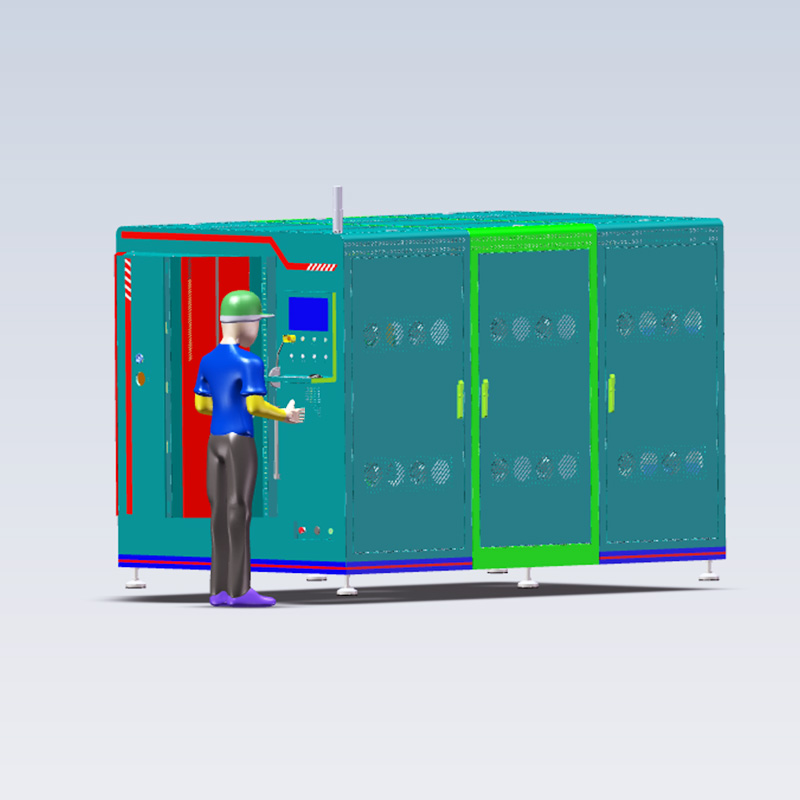

DLC Coating Machine: The Ultimate Guide to Diamond-Like Carbon Coating Systems

What is a DLC Coating Machine?

A DLC Coating Machine is a sophisticated piece of industrial equipment used to apply a Diamond-Like Carbon (DLC) coating onto the surface of components. Utilizing a specialized form of Physical Vapor Deposition (PVD), these machines create a thin, super-hard film that exhibits properties similar to natural diamond, including exceptional hardness, low friction, and high wear resistance.

These systems are engineered for precision and repeatability, making them essential for manufacturers across the automotive, aerospace, medical device, and precision tooling industries who need to significantly enhance the performance and longevity of their critical parts.

How Does a DLC Coating Machine Work? (The PVD Process)

The application of DLC is a complex, vacuum-based process. A typical DLC coating system operates in the following key stages:

1. Cleaning and Preparation: Components are meticulously cleaned to remove any contaminants, oils, or oxides from the surface. This is critical for achieving optimal coating adhesion.

2. Loading into the Vacuum Chamber: The cleaned parts are loaded onto specialized fixtures and placed inside the high-vacuum deposition chamber of the machine.

3. Evacuation and Heating: The chamber is pumped down to an ultra-high vacuum to eliminate any reactive gases. The substrates are then heated to a specific temperature to enhance adhesion and coating quality.

4. Plasma Etching (Pre-treatment): An argon plasma is generated to perform a final "sputter cleaning" of the part surfaces, removing any remaining microscopic impurities and activating the surface for coating.

5. DLC Coating Deposition: The core process begins. Depending on the technology (e.g., PACVD (Plasma-Assisted Chemical Vapor Deposition) or Sputtering), a carbon-containing gas precursor (like acetylene, C₂H₂) is introduced into the chamber.

   • A high-voltage bias is applied to the parts, creating a plasma.

   • The energy from the plasma breaks down the gas molecules, releasing carbon ions.

   • These carbon ions are accelerated towards the negatively charged components, bonding to the surface and forming a dense, amorphous DLC film.

6. Cooling and Unloading: After the deposition cycle is complete, the chamber is cooled down, brought back to atmospheric pressure, and the newly coated parts are unloaded.

Main Parts of DLC Coating System

A high-quality DLC coating equipment is comprised of several integrated subsystems:

• Vacuum Chamber: A robust, stainless steel chamber designed to maintain a high vacuum.

• Pumping System: A combination of roughing and high-vacuum pumps to achieve the necessary base pressure.

• Gas Delivery System: Precise mass flow controllers to manage the introduction of process gases (Argon, Acetylene, etc.).

• Power Supplies: Advanced pulsed DC or RF power supplies to generate and control the plasma.

• Heating System: Uniform heating elements to control substrate temperature.

• Advanced Control System: A PLC or computer-based interface for recipe management, process automation, and data logging to ensure repeatability.

Applications of DLC Coating Machines

Our industrial DLC coating machines serve a wide range of high-tech sectors by coating critical components:

• Automotive Industry: Piston pins, fuel injectors, tappets, camshafts, and transmission parts for reduced friction and improved fuel efficiency.

• Aerospace & Defense: Components for turbines, actuators, and landing gear requiring extreme wear and corrosion resistance.

• Medical & Surgical Tools: Scalpels, orthopedic blades, and surgical implants benefiting from biocompatibility, hardness, and low friction.

• Precision Molds & Tooling: Injection molds, extrusion dies, and cutting tools with dramatically extended service life.

• Consumer Electronics: Wear-resistant coatings for smartphone frames, watch components, and other durable goods.

Features of Hongfeng VAC's DLC Coating Machine

Investing in our DLC coating machine provides tangible benefits for your production line and product quality:

• Superior Coating Quality: Achieve consistent, ultra-hard (up to 5000 HV), and low-friction (coefficient of friction as low as 0.05) DLC coatings.

• Enhanced Durability: Drastically increase the wear resistance and service life of coated components, reducing downtime and replacement costs.

• Excellent Adhesion: Our advanced plasma pre-treatment processes ensure the DLC layer bonds strongly to the substrate, preventing delamination.

• Process Repeatability: Automated controls and precise parameter management guarantee the same high-quality results batch after batch.

• Versatility: Capable of coating a wide range of materials, including various steels, titanium, carbide, and more.

• Operational Efficiency: Designed for high uptime, easy maintenance, and efficient batch processing to maximize your return on investment.

Technical Specifications
